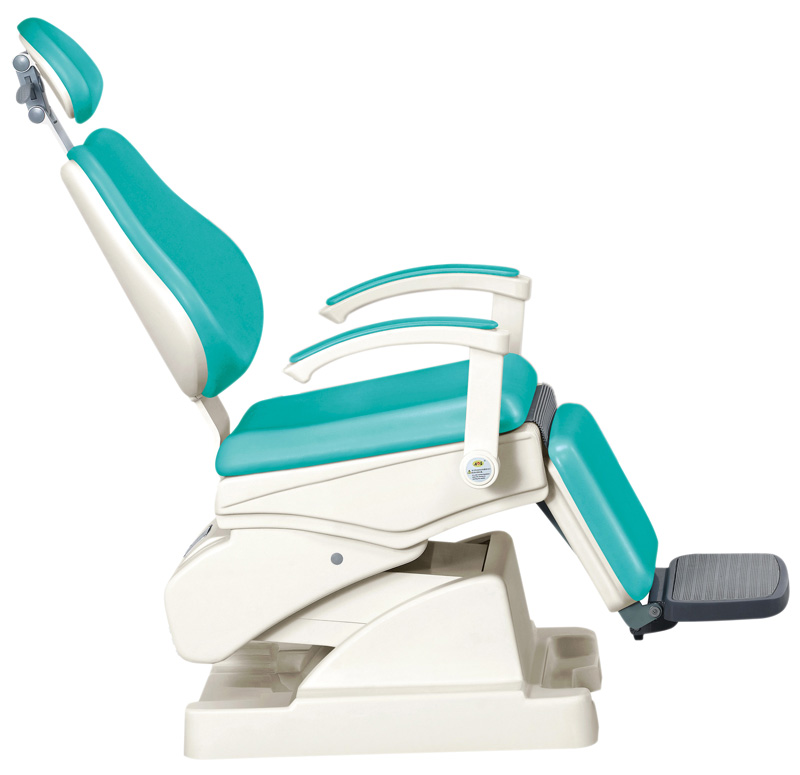

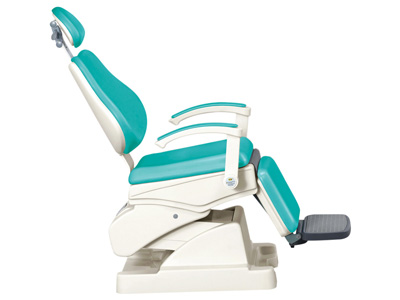

This standard sanor’e dental unit is equipped with a fold away dental patient chair with a 3-stage design. Compared to a traditional dental chair with a 1-stage design, this allows the patient to comfortably lie on their back.
The pedal features a parallel, indented design. When the chair leans forward, the pedal automatically retracts. When the chair is leaning back, the pedal extends and remains parallel with the cushion to allow for comfortable patient foot placement.
The headrest is telescopically adjustable. Length<120mm, Forwards inclination: 20°, Backwards inclination: 40°
Noise≤ 45db. It is equipped with high quality, silent DC motor to ensure usage safety.
The motion direction is controlled either by foot or by hand. The chair features a reset function and supports PLC control.

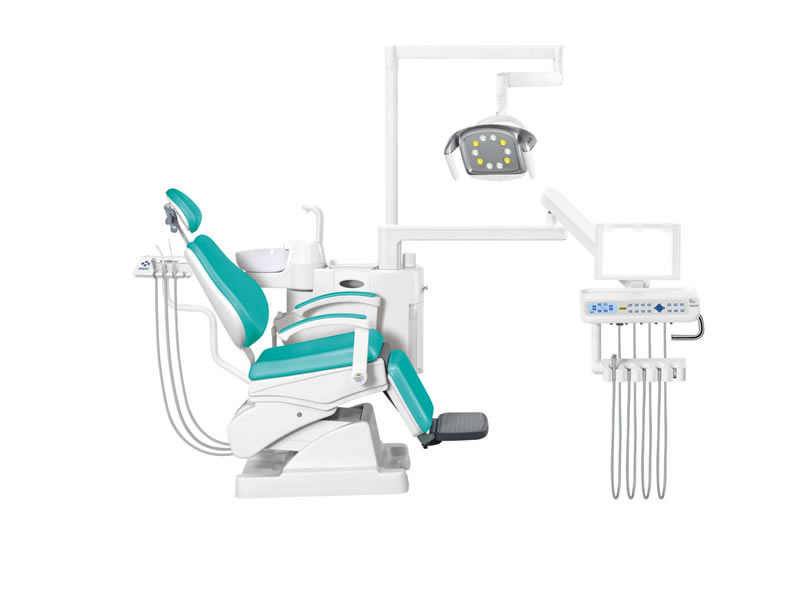

Dental Unit
The dental unit features a full computer control and operation panel. It is easy for dentists to observe and operate, effectively preventing incorrect operation.
Chair positioning control: The patient chair can be controlled for raising, lowering, backrest raising, and backrest recline. It also features reset function and supports PLC control.
LED cold light control: There is an infrared sensor switch for controlling light on/off and intensity.
Water heater control: Manually turn on/off.
Water flow control for mouthwash: Click button to turn on/off. The water supply duration can be manually set for an accurate mouthwash dosage.
Water flow control for spittoon flush: Click button to turn on/off. The spittoon flush duration can be manually set.
Control of the LED X-ray film viewer: Click button to turn on/off.

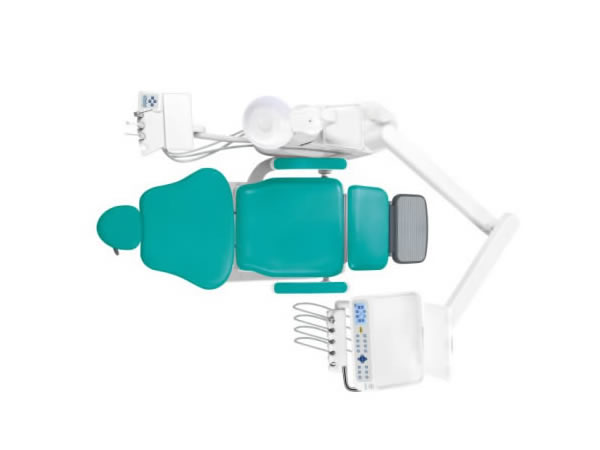

Rotatable unit box: The unit box is rotatable within 45°, thus offering more usable space for the dentist and dental technician to practice four handed dentistry, and more convenience for postoperative cleaning and maintenance.
Water purification system * 1: The water purification system provides clean water, including pure water, distilled water and more for the handpiece. The adjustment switch is easy to use.
Independent water supply device: this allows for a quick, convenient water filling process without detaching the water storage tank.

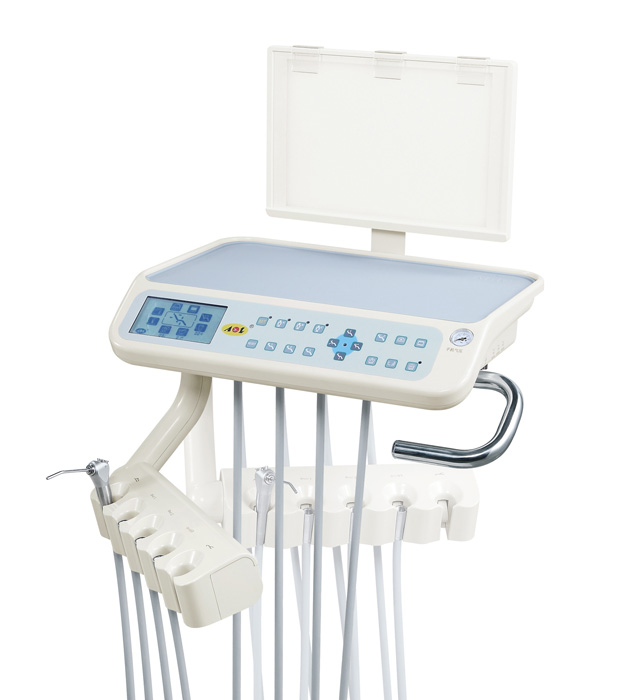

The operation panel is equipped with an LCD screen for work status display of different dental unit parts, including the water heater, spittoon flusher, LED dental operatory light, X-ray film viewer, and chair motion.
The spray water and air valve are located below the instrument tray, allowing the dentist to control the flow of the spray water and air according to their requirements.
The movable instrument tray remains fixed at any position along its movement path. It is flexible and easy to operate.
The control system is easy to use, operated using the assistant tray. The is used to control the spittoon flushing, the water supply, water heating, and chair motion.

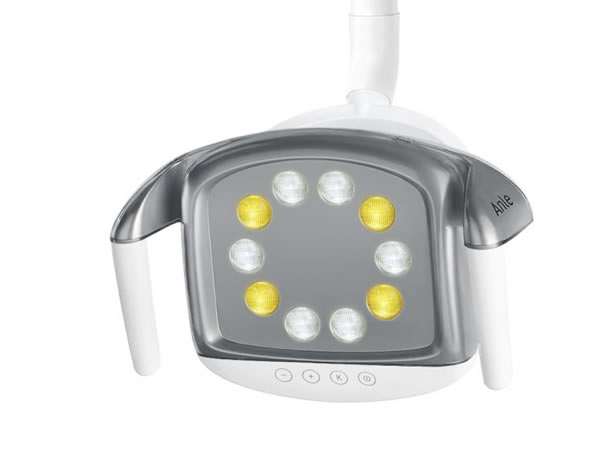

10 bulbs LED dental light
There are two control modes available with button and sensor switch to control the switch of the dental light and to adjust the color temperature and illumination.
Input voltage: AC12V -AC24V
Frequency: 50/60Hz
Illumination: 8000-60000LUX
Color temperature: 4000-5500K
Spot size: 80×160mm (distance 700mm)
Panoramic X-ray Film Viewer
Illumination intensity≥2200Lx

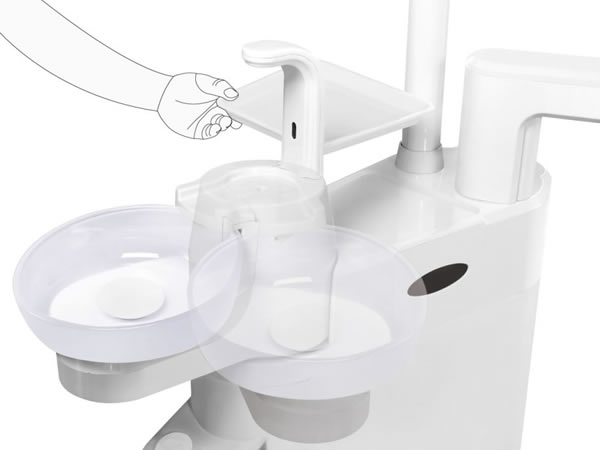

Rotating Spittoon
It features high temperature resistance, and is easy to clean, disinfect, and disassemble.
Max water flow rate≥4.5L/min

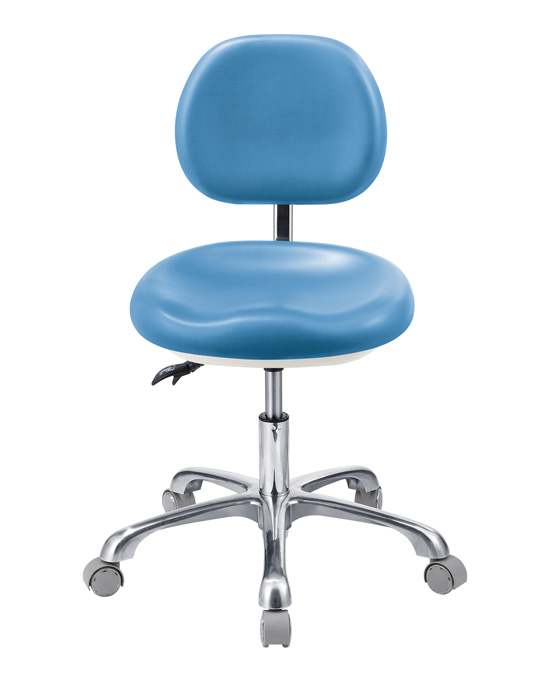

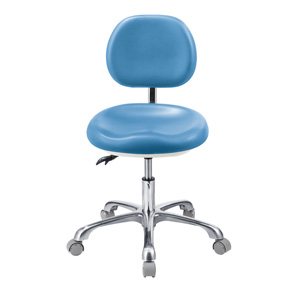

Operating Stool *1 (B type)
It features an adjustable height, flexible movement, and is easy to use.
Lifting range: 130mm
Weight capacity: 155kg
The surface of the operating stool is made of seamless PU leather and features an excellent softness and comfort. It is also easy to clean.
Detailed Configurations
Standard Configurations

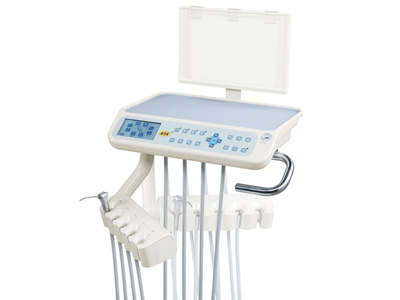

Low-mounted instrument tray
1
Foldaway dental patient chair
1
PU leather seat cushion
1
Control system with 9 memory positions
1
Adjustable double-jointed headrest
1
External junction box
1
Multi-function foot control
1
10 bulbs LED dental light (dual control, adjustable light color)
1
Panoramic X-ray Film Viewer
1
Dental spittoon(rotatable, detachable)
1
4 hole handpiece tubing
3
3-way syringe(cold/hot water)
2
Assistant control system
1
Strong & weak suction saliva ejector
1
Water storage tank (with independent water supply device)
1
Operator stool
2
Optional Configurations
Top-mounted instrument tray
Reflective LED dental light (dual control, adjustable light color)
Eco-friendly leather cushion
Air driven handpiece
Built-in scaler
Built-in curing light
Endoscope system
Optional Leather and Colors
Leather
Eco-friendly Leather
Working Environment
Air source: air pressure: 0.6MPa～0.80Mpa, flow rate＞50L/min, oil-free
Water source: water pressure: 0.20MPa～0.40MPa, flow rate＞10L/min, water hardness < 25°
Power supply: AC 220V 50Hz/60Hz, 350VA
Temperature: 5～40℃, Relative humidity: 30％～75％
Dimensions of workspace: length≥4000mm, width≥2600mm, height≥2000mm
Specifications
Detailed Configurations
