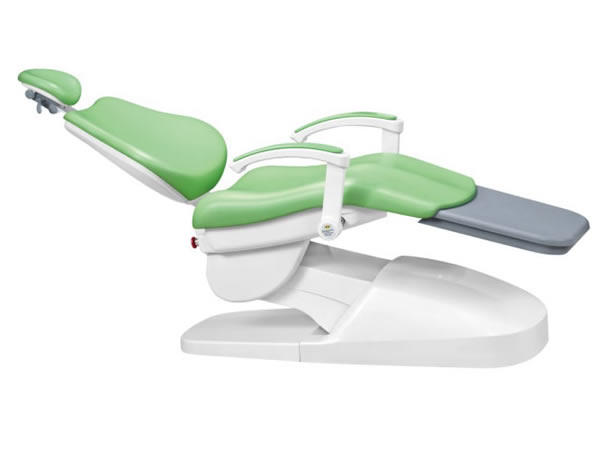

• Chair positioning control: The patient chair can be controlled for raising, lowering, backrest raising, and backrest recline. It also features reset function and supports PLC control.
• LED cold light control: The light on/off and light intensity can be controlled by both manual button switch and infrared sensor switch.
• Water heater control: Manually turn on/off.

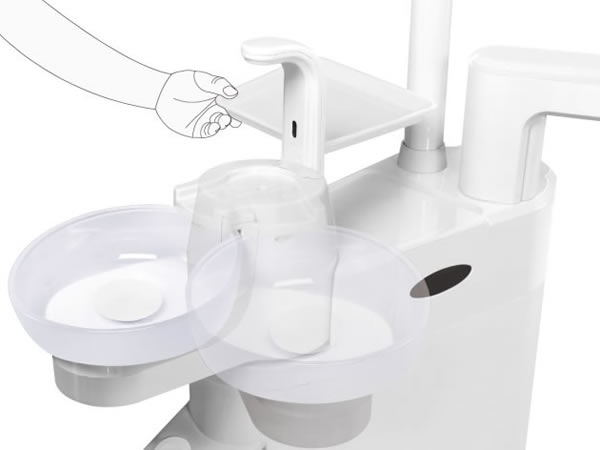

• Water flow control for mouthwash: Click button to turn on/off. The water supply duration can be manually set for an accurate mouthwash dosage.
• Water flow control for spittoon flush: Click button to turn on/off. The spittoon flush duration can be manually set.
• Control of the LED X-ray film viewer: Click button to turn on/off.
• Rotatable unit box: The unit box is rotatable within 45°, thus offering more usable space for the dentist and dental technician to practice four handed dentistry, and more convenience for postoperative cleaning and maintenance.
• Water purification system * 1: The water purification system provides clean water, including pure water, distilled water and more for the handpiece. The adjustment switch is easy to use.
• Independent water supply device: this allows for a quick, convenient water filling process without detaching the water storage tank.

• Configurations:
  Instrument tray * 1
  High speed 4 hole handpiece * 2
  Low speed 4 hole handpiece * 1
  3-way syringe * 1
  Panoramic X-ray film viewer * 1

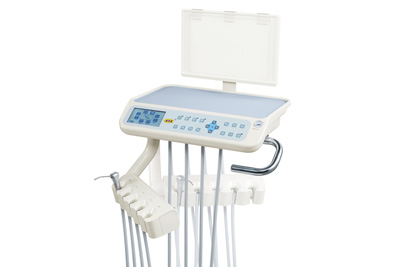

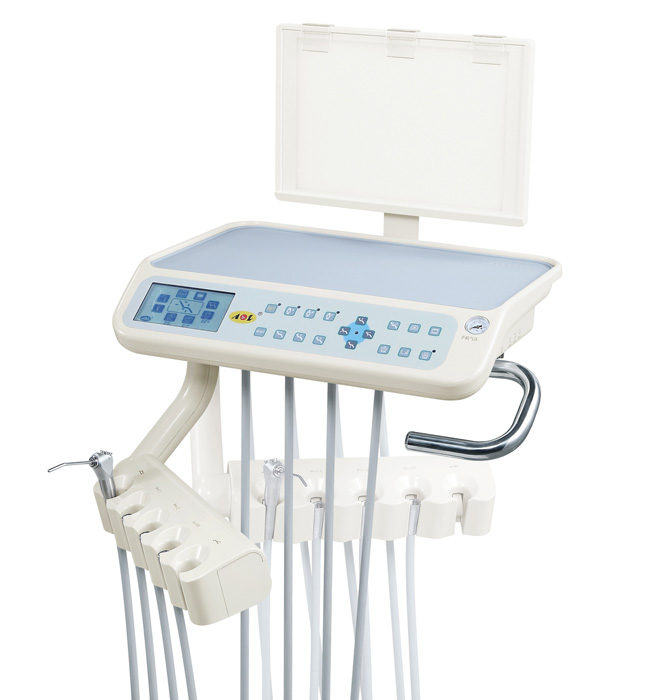

• The operation panel is equipped with an LCD screen to display the work status for different dental unit parts, including the water heater, spittoon flusher, LED dental operatory light, X-ray film viewer, and chair motion.
• The spray water and air valve are located below the instrument tray, allowing the dentist to control the flow of the spray water and air according to their needs.
• The movable instrument tray remains fixed at any position along the movement path. It is flexible and easy to use.

• Configurations:
  Strong & weak suction saliva ejector: 1
  3-way syringe: 1
• The control system operated by the assistant tray is easy to use. It is used to control the spittoon flushing, the water supply, the water heating, and the chair motion.

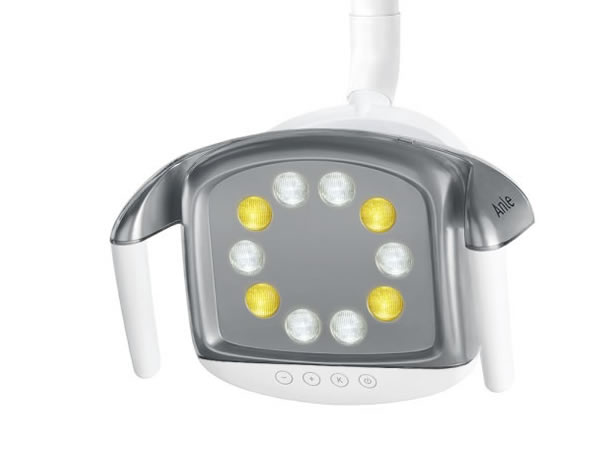

There are two control modes available with button and sensor switch to control the switch of the dental light and to adjust the color temperature and illumination.
Input voltage: AC12V -AC24V
Frequency: 50/60Hz Illumination: 8000-60000LUX
Color temperature: 4000-5500K
Spot size: 80×160mm (distance 700mm)

Illumination intensity≥2200Lx

• It features a high temperature resistance, and is easy to clean, disinfect, and disassemble.
• Max water flow rate≥4.5L/min

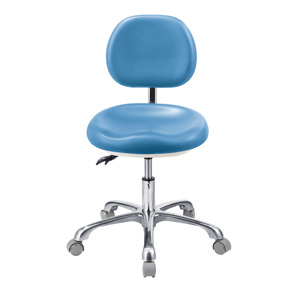

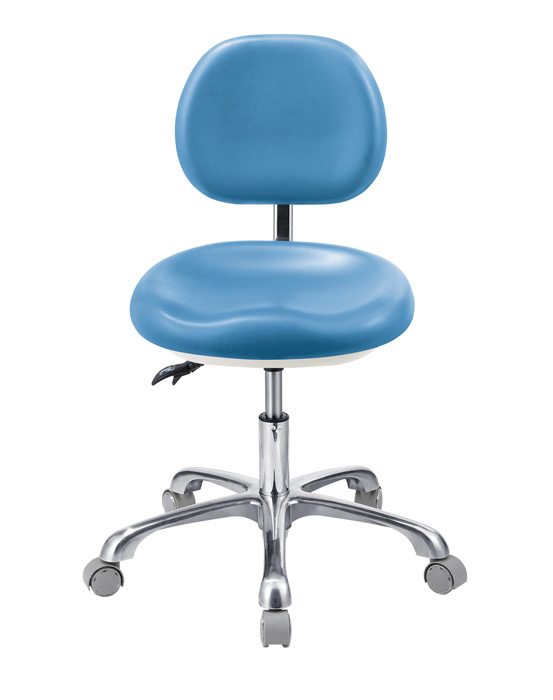

• It features an adjustable height, flexible movement, and is easy to use.
• Lifting range: 130mm
• Weight capacity: 155kg
• The surface of the operating stool is made of a soft, comfortable seamless PU leather that will not stain and is easy to clean.
