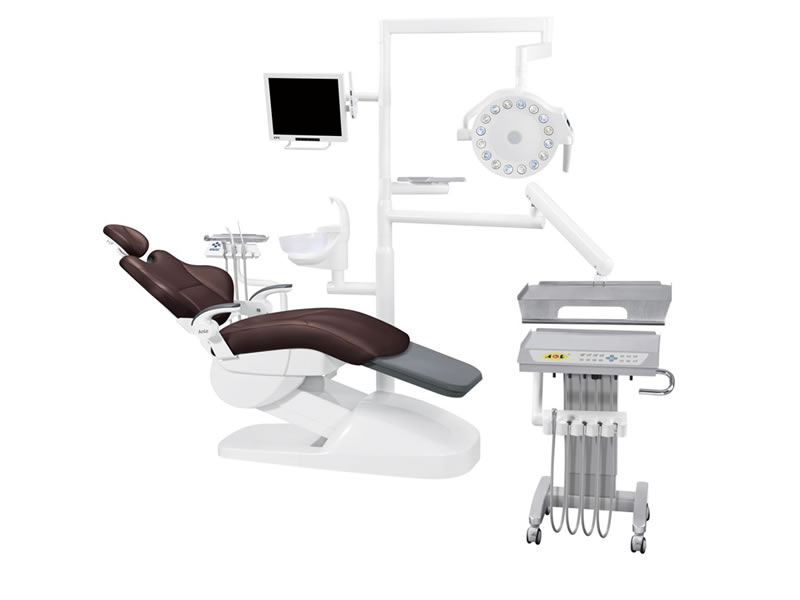

AL-398HB Dental Unit

The headrest, backrest and seat cushion of the dental unit are made of leather. The soft touch can bring patients a perfect sitting and lying experience. The instrument trays are made of high-quality stainless steel, corrosion-resistant and high-temperature resistant, which is convenient for postoperative maintenance and cleaning.

The dental equipment is equipped with quality LED shadowless operating light. The shadowless light adopts environmentally friendly low-consumption lighting technology, providing lighting with close to natural light color temperature, high color fidelity, and high color rendering index. This ensures excellent lighting effects and extended lifespan of the bulbs, enabling smooth operation of the doctor.

Specifications
Patient Chair
Patient Chair
  • Lift speed≥15mm/s, smooth and reliable lifting
    Seat cushion tilt angle≤ 10°
    Backrest adjustable angle: 0°~70°
  • The headrest is telescopic adjustable. Length≤120mm, Forwards inclination: 20°, Backwards inclination: 40°
  • Noise≤ 45db. It is equipped with high quality silent DC motor to ensure safe use.
  • The four directions of motion can be controlled by foot or hand. The microcomputer control system has reset function and supports PLC control (We can use preset program to control the electric circuit according to your requirements.).
Dental Unit
  • Dental Unit
    The dental unit features full computer control and operation panel. It is convenient for dentist to observe and operate and can effectively prevent incorrect operation.
    • Chair positioning control: The patient chair can be controlled to raise, lower, raise the backrest, and recline the backrest. It also has reset function and supports PLC control.
    • LED cold light control: The light on/off and light intensity can be controlled by both manual button switch and infrared sensor switch.
    • Water heater control: Manually turn on/off.
    • Water flow control for mouthwash: Click button to turn on/off. The duration of water supply can be set to realize accurate dosing of mouthwash.
    • Water flow control for spittoon flush: Click button to turn on/off. The duration of the spittoon flush can be set.
    • The control of LED X-ray film viewer: Click button to turn on/off.
    • Water purification system * 1: The water purification system provides clean water including pure water, distilled water and more for handpiece. Its adjusting switch is It’s easy to use due to the adjustment switch.
    • A set of stainless steel tray: The instrument tray is made of high-quality stainless steel, corrosion-resistant and high-temperature resistant.

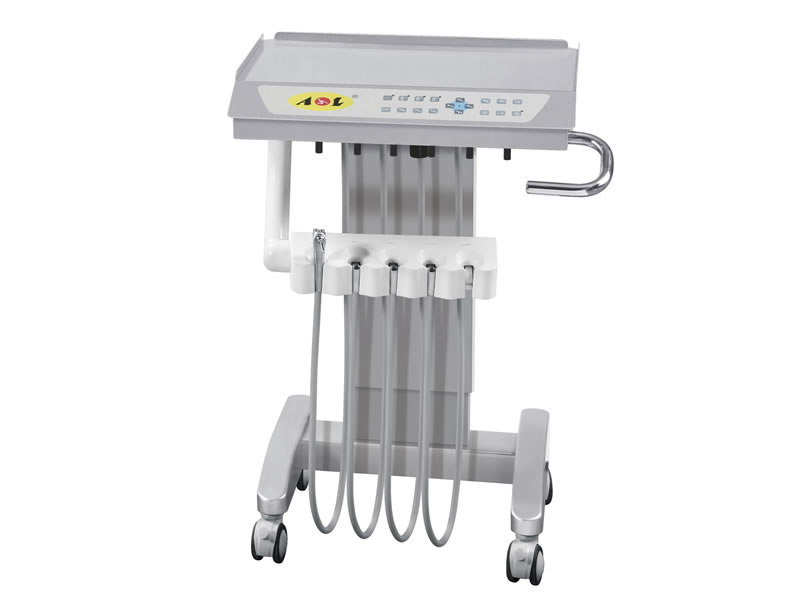

  • Low-Mounted Instrument Tray
    Low-Mounted Instrument Tray
    • Configurations:
      Trolley type instrument tray * 1
      High speed 4 hole handpiece * 2
      Low speed 4 hole handpiece * 1
      3-way syringe * 1
      Panoramic X-ray film viewer * 1
    • The operation panel is equipped with an LCD screen for work status display of different dental unit parts, including the water heater, spittoon flusher, LED dental operatory light, X-ray film viewer, and chair motion.
    • The spray water and air valve are located below the instrument tray, allowing the dentist to control the flow of the spray water and air according to their requirements.
    • The movable instrument tray remains fixed at any position along its movement path. It is flexible and easy to operate.
  • Assistant Tray
    Assistant Tray
    • Configurations:
      Strong & weak suction saliva ejector *1
      3-way syringe * 1
      Stainless steel tray*1
    • The control system for the assistant tray is convenient to use. It can be used to control the spittoon flushing, the water supply, the water heating, the motion of the chair, etc.

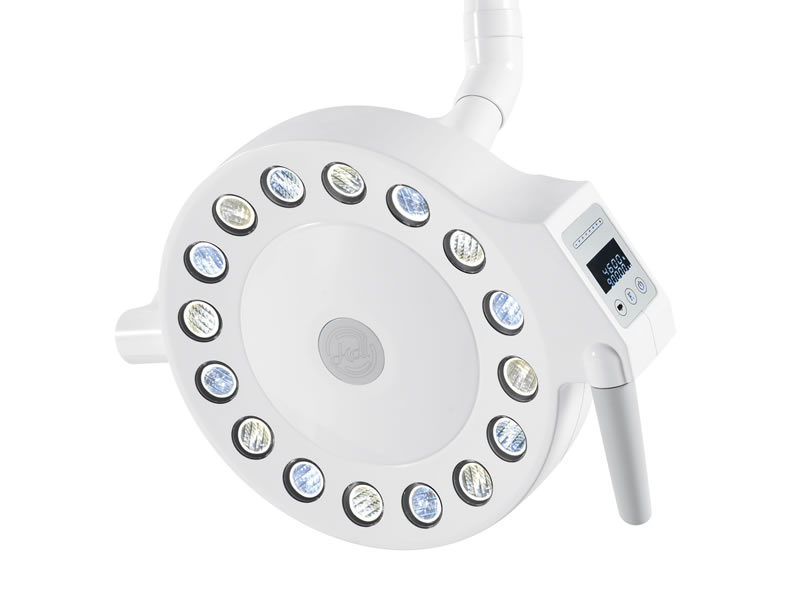

  • LED shadowless operating light (adjustable color temperature and illumination)
    LED shadowless operating light (adjustable color temperature and illumination)

    Voltage: AC12V-AC24V
    Power: 55VA
    Rated power: 54W
    Illumination: 7000-120000lx
    Color temperature: 4000-5500K
    Net weight: 2476g

  • Rotating Spittoon
    Rotating Spittoon
    • It features a high temperature resistance and is easy to clean, disinfect, and disassemble.
    • Max. flow rate≥4.5L/min
  • Rotating Spittoon

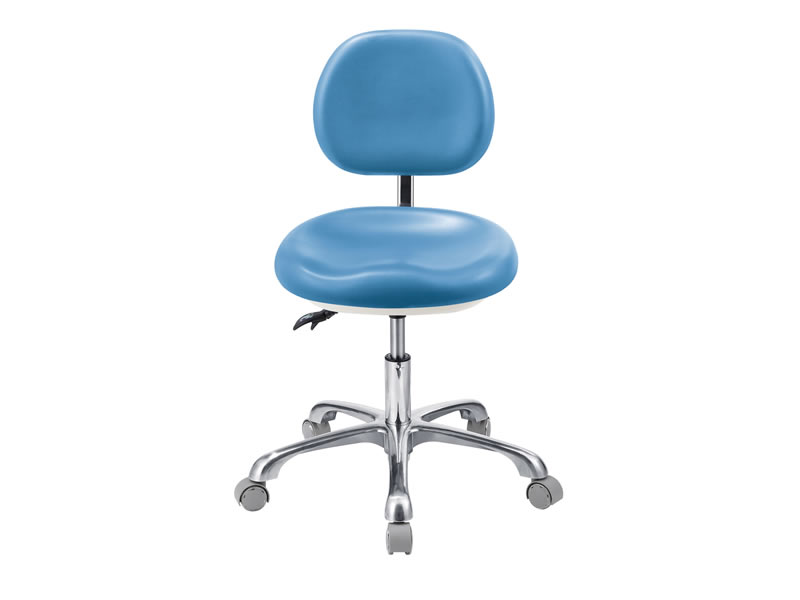

    Operating Stool *1 (B type)
    • It features an adjustable height and flexible movement.
    • Lifting range: 130mm
    • Weight capacity: 155kg
    • The surface of the operating stool is made of a soft and comfortable seamless PU leather that will not easily stain and is easy to clean.
Detailed Configurations
Standard Configurations
Low-mounted instrument tray (cart type) 1
Medium electric dental chair frame 1
Eco-friendly leather cushion 1
Control system with 9 memory positions 1
Adjustable double-jointed headrest 1
Built-in junction box 1
Multi-function foot control 1
LED shadowless operating light (adjustable color temperature and illumination) 1
Dental spittoon (rotatable, detachable) 1
4 hole handpiece tubing 3
3-way syringe(cold/hot water) 2
Assistant control system 1
Strong and weak sucker 1
Water storage tank 1
Operator stool 2

Optional Configurations
  • PU leather cushion
  • Air driven handpiece
  • Built-in scaler
  • Built-in curing light
  • Endoscope system
Working Environment
  • Air source: air pressure: 0.6MPa～0.80Mpa, flow rate＞50L/min, oil-free
  • Water source: water pressure: 0.20MPa～0.40MPa, flow rate＞10L/min, water hardness < 25°
  • Power supply: AC 220V 50Hz/60Hz, 350VA
  • Temperature: 5～40℃, Relative humidity: 30％～75％
  • Dimensions of workspace: length≥4000mm, width≥2600mm, height≥2000mm
