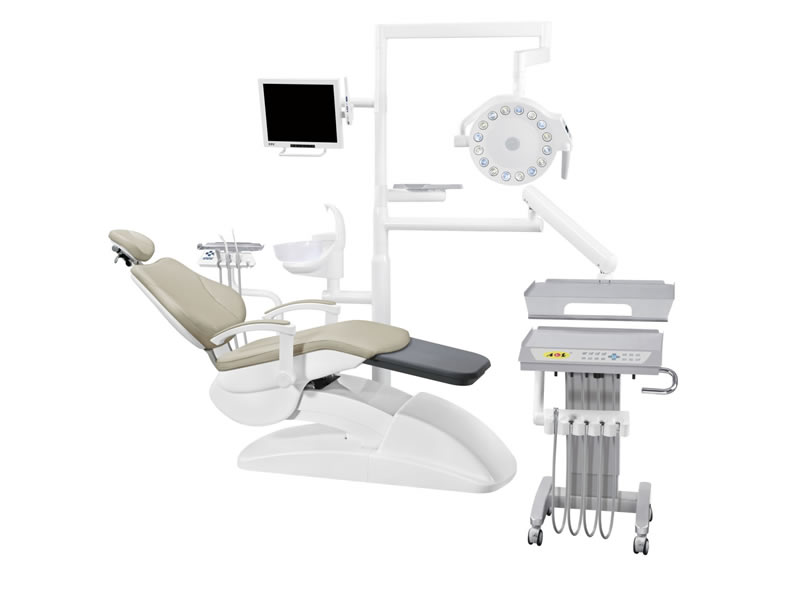

This dental unit adopts a guide rail chair frame, the backrest slide rail is made with aluminum alloy tracks to control transmission mechanism, and a motor with quick start and response is installed to make the backrest operation not only fast but also stable.
The dental equipment is equipped with quality LED shadowless operating light. The shadowless light adopts environmentally friendly low-consumption lighting technology, providing lighting with close to natural light color temperature, high color fidelity, and high color rendering index. This ensures excellent lighting effects and extended lifespan of the bulbs, enabling smooth operation of the doctor.
Specifications
Patient Chair
Lowest position: 430mm
Highest position: 720mm
Weight capacity>135kg (dental unit excluded)
Lift speed≥15mm/s, smooth and reliable lifting
Seat cushion tilt angle≤ 10°
Seat back adjustable angle: 0°~70°
The headrest is telescopic adjustable. Length≤120mm, Forwards inclination: 20°, Backwards inclination: 40°
Noise≤ 45db. It is equipped with high quality silent DC motor to ensure safe use.
The four directions of motion can be controlled by foot or hand. The microcomputer control system has reset function and supports PLC control (We can use preset program to control the electric circuit according to your requirements.).
Dental Unit
With computer control and operation panel, it is convenient for dentist to observe and operate and can effectively prevent incorrect operation.
Chair positioning control: The patient chair can be controlled to raise, lower, raise the backrest, and recline the backrest. It also has reset function and supports PLC control.
LED cold light control: The light on/off and light intensity can be controlled by both manual button switch and infrared sensor switch.
Water heater control: Manually turn on/off.
Water flow control for mouthwash: Click button to turn on/off. The duration of water supply can be set to realize accurate dosing of mouthwash.
Water flow control for flushing spittoon: Click button to turn on/off. The duration of the spittoon flush can be set.
The control of LED X-ray film viewer: Click button to turn on/off.
Water purification system * 1: The water purification system provides clean water including pure water, distilled water and more for handpiece. It’s very easy to o due to the adjustment switch.
A set of stainless steel tray: The instrument tray is made of high-quality stainless steel, corrosion-resistant and high-temperature resistant.
The operation panel is equipped with an LCD screen for work status display of different dental unit parts, including the water heater, spittoon flusher, LED dental operatory light, X-ray film viewer, and chair motion.
The spray water and air valve are located below the instrument tray, allowing the dentist to control the flow of the spray water and air according to their requirements.
The movable instrument tray remains fixed at any position along its movement path. It is flexible and easy to operate.
The control system for the assistant tray is convenient to use. It can be used to control the spittoon flushing, the water supply, the water heating, the motion of the chair, etc.

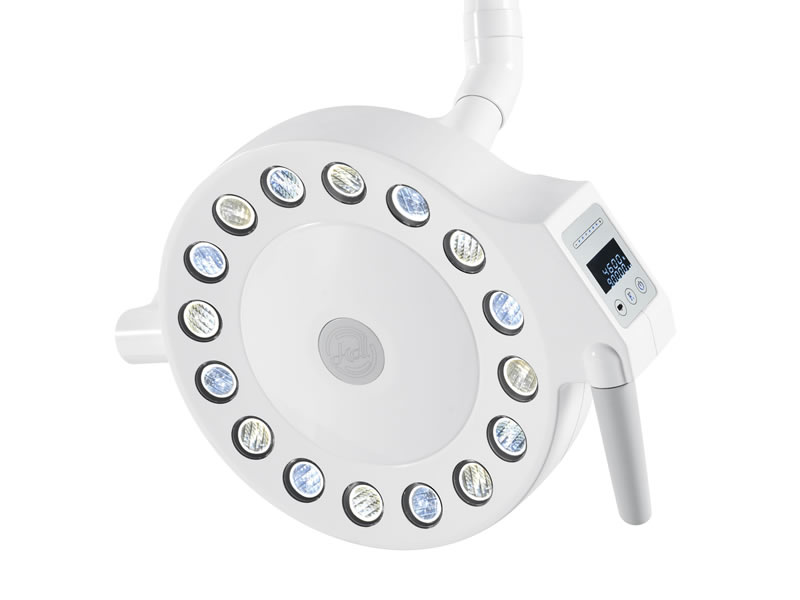

LED shadowless operating light (Adjustable color temperature and illumination)
Voltage: AC12V-AC24V
Power: 55VA
Rated power: 54W
Illumination: 7000-120000lx
Color temperature: 4000-5500K
Net weight: 2476g
Rotating Spittoon
It features a high temperature resistance and is easy to clean, disinfect, and disassemble.
Max. flow rate≥4.5L/min
338A
338B

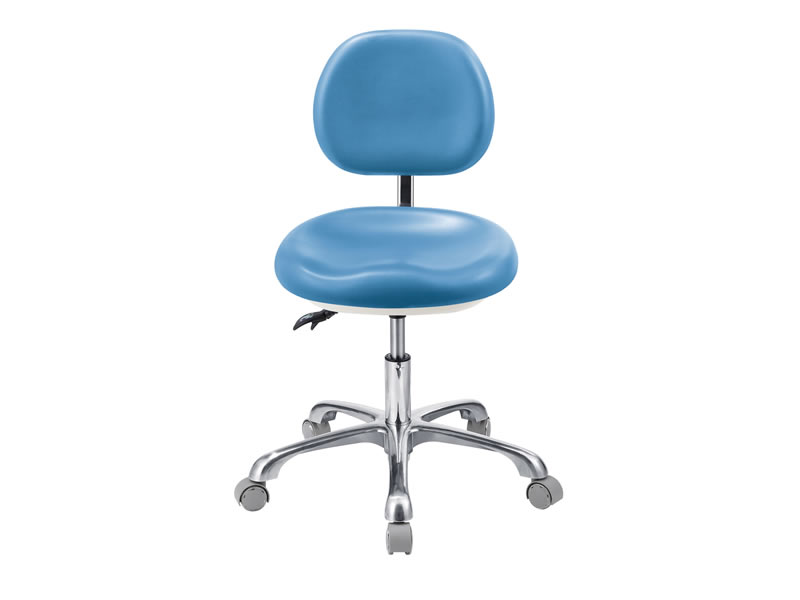

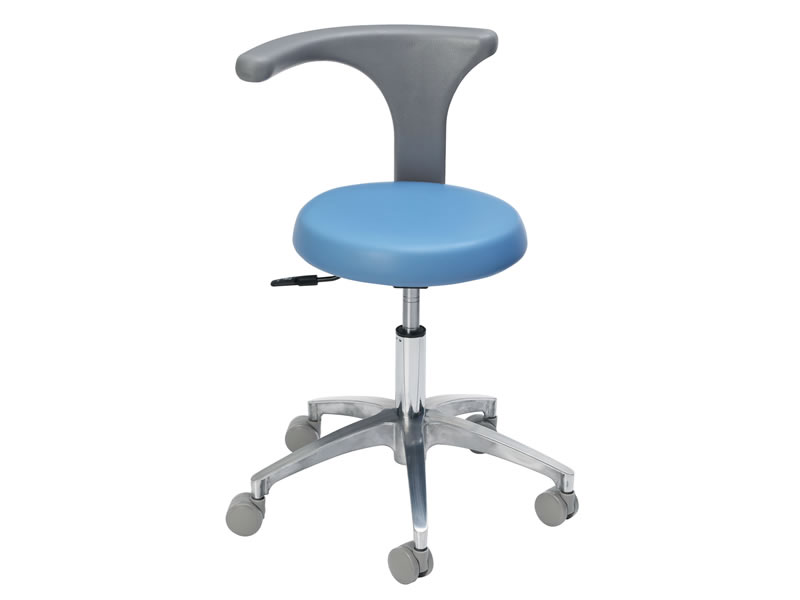

Operating Stool *2 (an A type and a B type)
The operating stool features an adjustable height, and flexible movement, which is easy to use.
Lifting range: 130mm
Weight capacity: 155kg
The surface of the operating stool is made of a soft and comfortable seamless PU leather that will not easily stain and is easy to clean.
Detailed Configurations
Standard Configurations

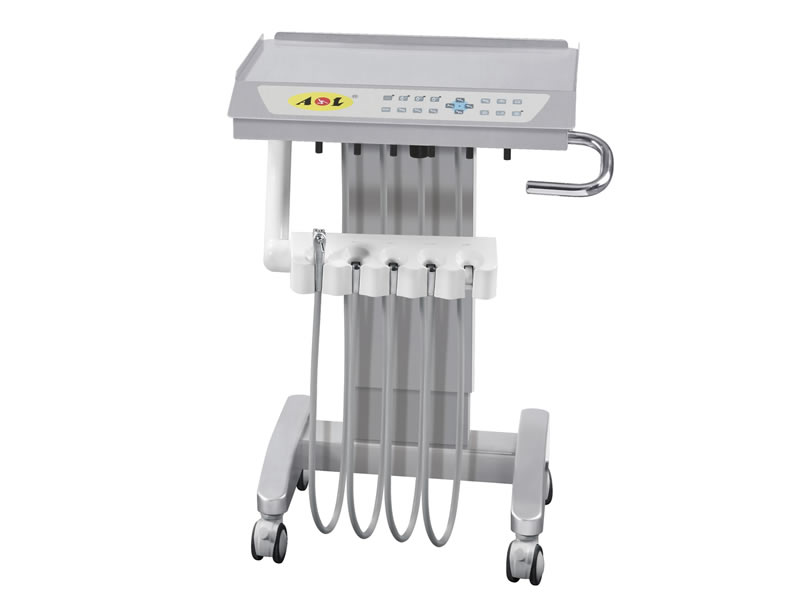

Low-mounted instrument tray (cart type)
1
Dental patient chair (with backrest slide rail)
1
Eco-friendly leather cushion
1
Control system with 9 memory positions
1
Adjustable double-jointed headrest
1
Built-in junction box
1
Multi-function foot control
1
LED shadowless operating light (adjustable color temperature and illumination)
1
Dental spittoon (rotatable, detachable)
1
4 hole handpiece tubing
3
3-way syringe(cold/hot water)
2
Assistant control system
1
Strong and weak sucker
1
Water storage tank
1
Operator stool
2
Optional Configurations
PU leather cushion
Air driven handpiece
Built-in scaler
Built-in curing light
Endoscope system
Working Environment
Air source: air pressure: 0.6MPa～0.80Mpa, flow rate＞50L/min, oil-free
Water source: water pressure: 0.20MPa～0.40MPa, flow rate＞10L/min, water hardness < 25°
Power supply: AC 220V 50Hz/60Hz, 350VA
Temperature: 5～40℃, Relative humidity: 30％～75％
Dimensions of workspace: length≥4000mm, width≥2600mm, height≥2000mm
