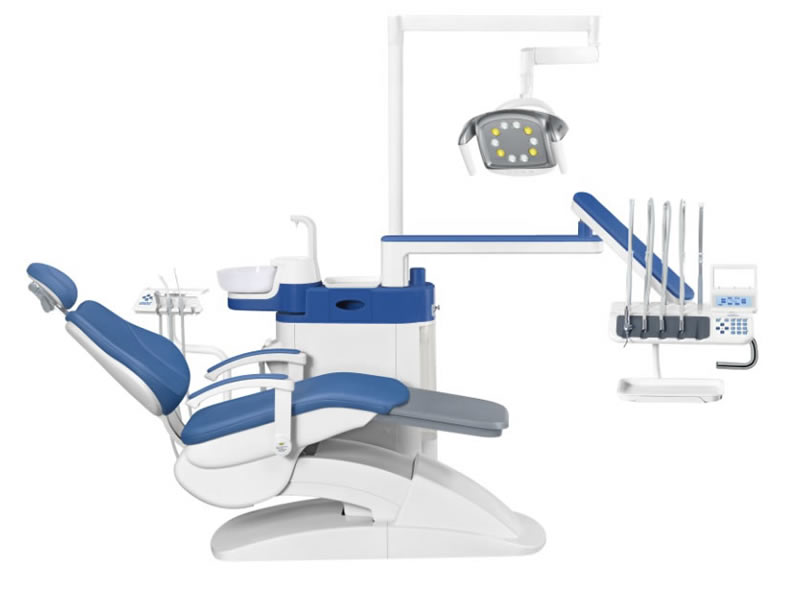

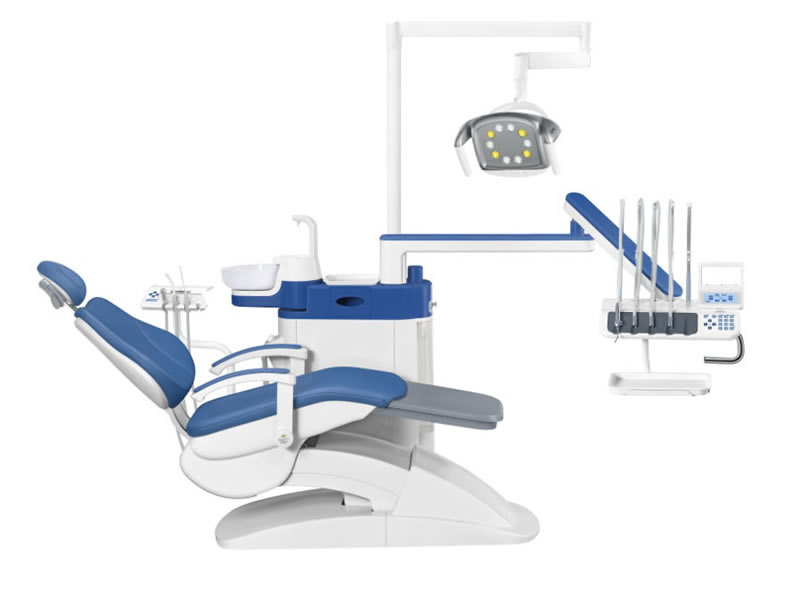

This dental unit is equipped with a floor-standing unit box to effectively reduce the chair weight and improve stability and safety. The unit box includes the rotatable spittoon, and independent water supply device, a multi-purpose tray and tissue box, and integrated strong and weak suction filters. The versatile design meets more dentist and patient requirements.
This dental unit is equipped with a floor-standing unit box that effectively reduces the dental chair weight, ensuring it has an added stability and safety. The unit box includes the rotatable spittoon, independent water adding device, multi-purpose tray and tissue box, and integrated strong and weak suction filters. This versatile design meets more requirements for both dentists and patients.
The headrest is telescopic adjustable. Length≤120mm, Forwards inclination: 20°, Backwards inclination: 40°
Noise≤ 45db. It is equipped with high quality silent DC motor to ensure the use safety.
The four directions of motion can be controlled by foot or hand. The microcomputer control system has reset function and support PLC control (We can use preset program to control the electric circuit according to your requirements.).
Dental Unit
The dental unit features full computer control and operation panel. It is convenient for dentist to observe and operate and can effectively prevent incorrect operation.
Chair positioning control: The patient chair can be controlled to raise, lower, raise the backrest, and recline the backrest. It also has reset function and support PLC control.
LED cold light control: The light on/off and light intensity can be controlled by both manual button switch and infrared sensor switch.
Water heater control: Manually turn on/off.
Water flow control for mouthwash: Click button to turn on/off. The duration of water supply can be set to realize accurate dosing of mouthwash.
Water flow control for spittoon flush: Click button to turn on/off. The duration of the spittoon flush can be set.
The control of LED X-ray film viewer: Click button to turn on/off.
Water purification system * 1: The water purification system provides clean water including pure water, distilled water and more for handpiece. Its adjusting switch is easy to use.
The independent water supply device: it allows for a quick, convenient water filling process without detaching the water storage tank.
Floor-standing unit box: It effectively reduces the dental chair weight, ensuring the patient chair has an added stability and safety.

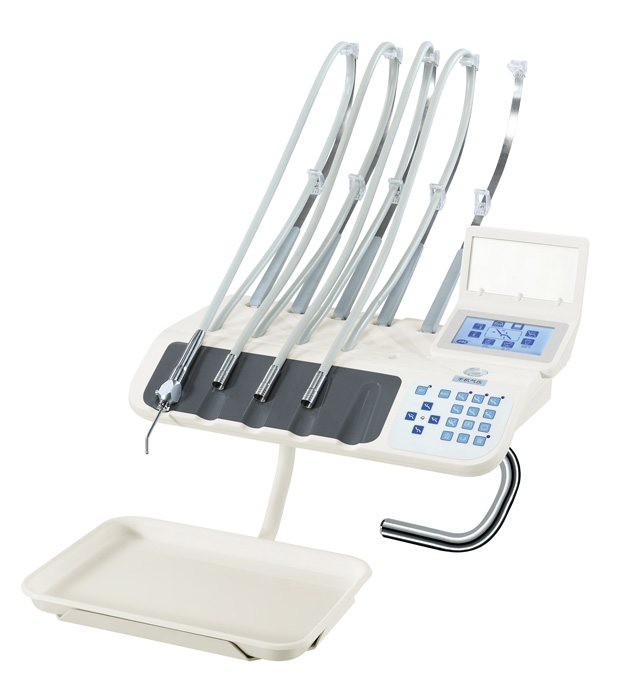

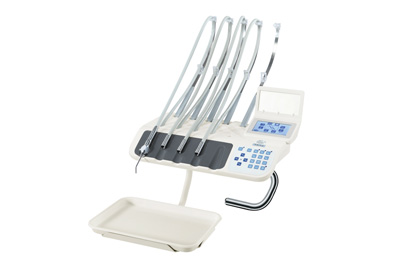

Low-Mounted Instrument Tray
Configurations:
Top-mounted instrument tray and integrated LED X-ray film viewer * 1
High speed 4 hole handpiece * 2
Low speed 4 hole handpiece * 1
3-way syringe * 1
The operation panel is equipped with LCD screen to display work status of various parts of the dental unit including water heater, spittoon flusher, LED dental operatory light, X-ray film viewer, motion of the chair, etc.
The spray water and air valve is below the instrument tray by which dentist can control the flow of spray water and air according to requirements.
The spray water and air valve is below the instrument tray by which dentist can control the flow of spray water and air according to requirements.
The control system operated by assistant tray is convenient to use. It can be used to control the spittoon flushing, the water supply, the water heating, the motion of the chair, etc.

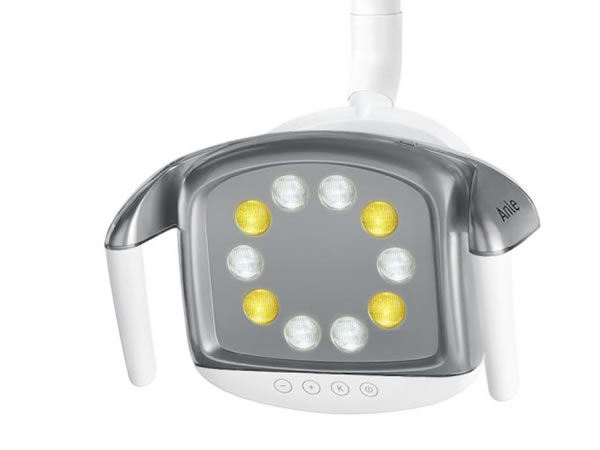

10 bulbs LED dental light
There are two control modes available with button and sensor switch to control the switch of the dental light and to adjust the color temperature and illumination.
Input voltage: AC12V -AC24V
Frequency: 50/60Hz
Illumination: 8000-60000LUX
Color temperature: 4000-5500K
Spot size: 80×160mm (distance 700mm)
Integrated LED X-ray Film Viewer
Integrated LED X-ray Film Viewer

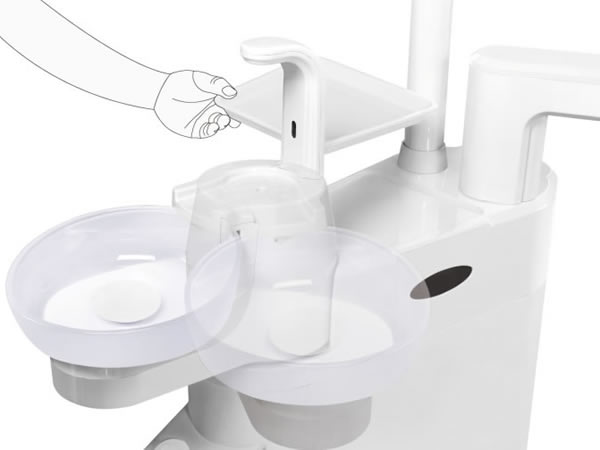

Rotating Spittoon
It features high temperature resistance, easy to clean, disinfect, and disassemble.
Max water flow rate≥4.5L/min
338A
338B

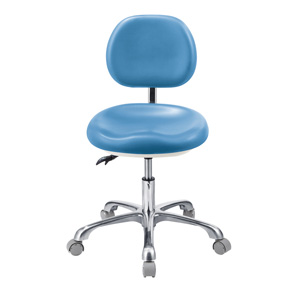

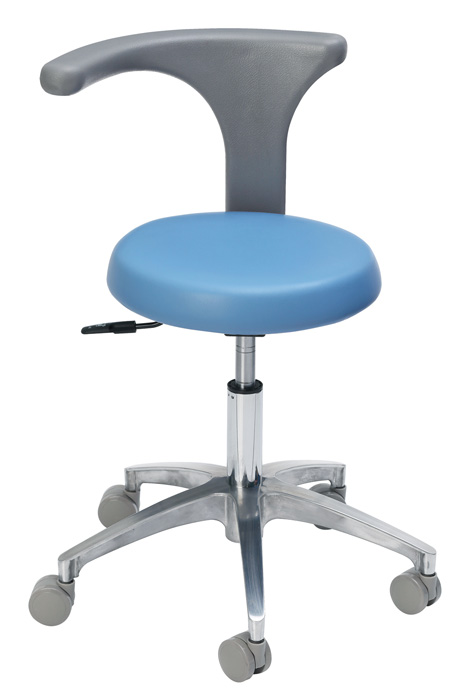

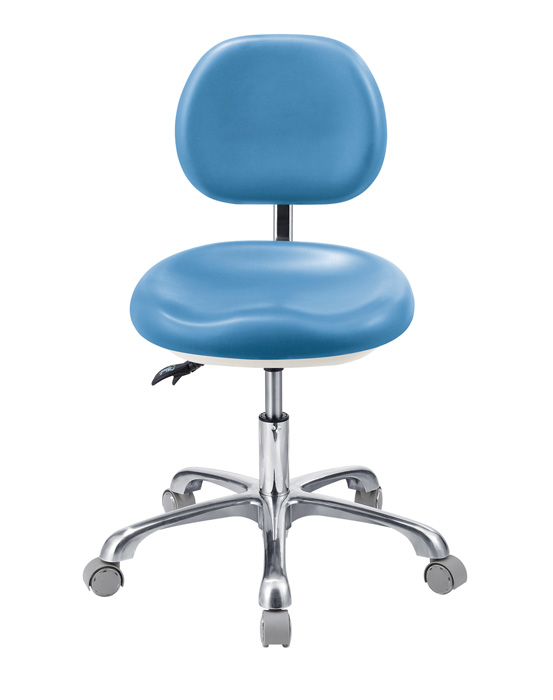

Operating Stool *2 (an A type and a B type)
It has the advantages of adjustable height, flexible movement, and easy to use.
Lifting range: 130mm
Weight capacity: 155kg
The surface of the operating stool is made of seamless PU leather which features softness and comfort, not easy to stain, and convenient to clean.
Detailed Configurations
Standard Configurations
Top-mounted instrument tray
1

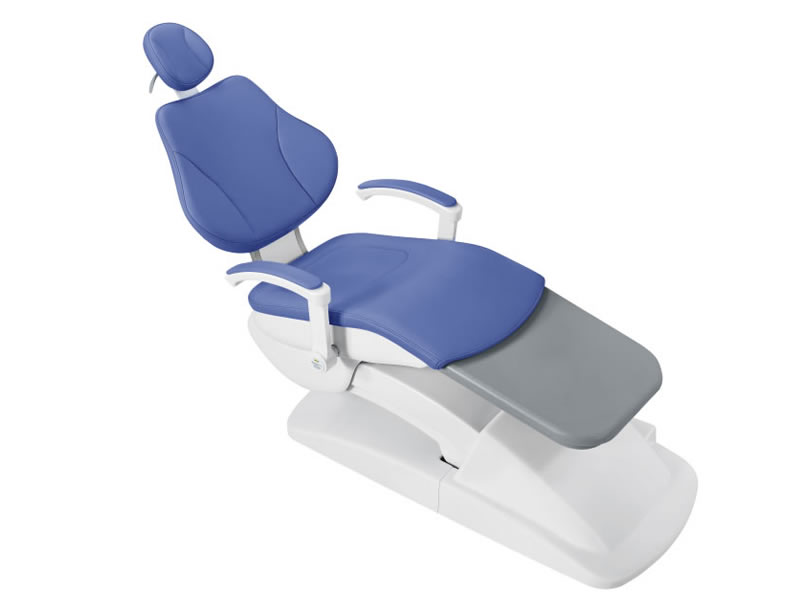

Dental patient chair (with backrest slide rail)
1
Eco-friendly leather cushion
1
Control system with 9 memory positions
1
Adjustable double-jointed headrest
1
Built-in junction box
1
Multi-function foot control
1
10 bulbs LED dental light (dual control, adjustable light color)
1
Integrated LED X-ray film viewer
1
Dental spittoon (rotatable, detachable)
1
4 hole handpiece tubing
3
3-way syringe(cold/hot water)
2
Assistant control system
1
Strong & weak suction saliva ejector
1
Water storage tank (with independent water supply device)
1
Operator stool
2
Optional Configurations
PU leather cushion
Air driven handpiece
Built-in scaler
Built-in curing light
Endoscope system
Optional Leather and Colors
Leather
Eco-friendly Leather
Working Environment
Air source: air pressure: 0.6MPa～0.80Mpa, flow rate＞50L/min, oil-free
Water source: water pressure: 0.20MPa～0.40MPa, flow rate＞10L/min, water hardness < 25°
Power supply: AC 220V 50Hz/60Hz, 350VA
Temperature: 5～40℃, Relative humidity: 30％～75％
Dimensions of workspace: length≥4000mm, width≥2600mm, height≥2000mm
Specifications
Detailed Configurations
